8 port led controller

inclusief voeding en sd kaart

1. 32—256 Gray level, Support software Gamma correction
2. Support the rules and special-shaped handle.
3. Eight--port output, every port can support 512-1024 pixels
4. Offline (SD Card) control , can be multiple controllers used in combination , play
back content stored in the SD card.
5. Compatible with single and dual IC, if you control a single line IC LED lights,
without being connected to the CLK line.

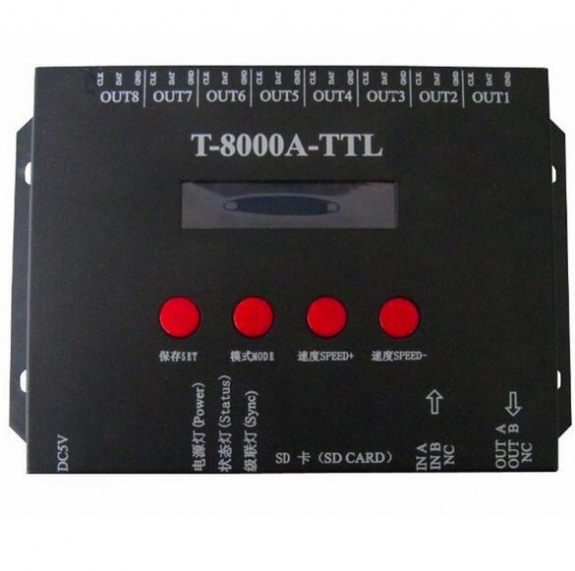

6. New T-8000A have a screen, The controller can be encrypted to limit the times of use.

NOTE :
1. When T-8000A (T8000. T8000A, T-8000A-TTL) controller control less than 512 lamps the frame rate can reach 30fps. When the port controls more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically.

T8000 SD card LED controller equipped with one 5V adaptor, America or Europe plug available

IC supported

IC supported

Software code&

Controller type

Pixel /(MAX)NOTE

LPD6803, D705,1101, 6909, 6912

T-8000-68038192

32 grade gray level

LPD8806, LPD8809T-8000-88064096/8192

TM1803, TM1804, TM1809, TM1812

T-8000-TM4096/8192TM1804&TM1809
Divided into high speed and low speed

TM1903, TM1904,  TM1909, TM1912

T-8000-TM194096/8192

UCS6909, UCS6912, UCS7009, UCS5903

T-8000-UCS328192

UCS1903, UCS1909, UCS1912

T-8000-UCS2564096/8192Divided into high speed and low speedUCS3903T-8000-UCS10244096/8192

DMX512T-8000-DMX1360/4096

Compatible with standard DMX512

WS2801, WS2803T-8000-WS4096/8192
WS2811T-8000-WS28114096/8192Divided into high speed and low speedDS189T-8000-DS1894096/8192
TLS3001, TLS3002, TLS3008T-8000-TLS4096/8192
P9813T-8000-P98134096/8192
SM16715T-8000-SM167154096/8192Divided into high speed and low speedSM16716T-8000-SM167164096/8192
BS0901, BS0902 T-8000-09014096/8192
BS0815T-8000-08154096/8192
